网易云音乐Android版逆向分析

网易云音乐Android版逆向分析

背景

用抓包工具抓取网易云音乐网络通信数据包，发现被加密。于是便尝试对加密过程进行分析
1

JAVA层分析

1. 用JEB反编译apk文件，发现字符串被加密了，无法直接搜索字符串定位关键代码。于是写了一个Xposed插件，获取解密后的字符串。

1
2
3
4
5
6
7
8
9
10
findAndHookMethod("a.auu.a", lpparam.classLoader, "c", String.class,  new XC_MethodHook()
{

    @Override
    protected void afterHookedMethod(MethodHookParam param) throws Throwable {
        super.afterHookedMethod(param);
        XposedBridge.log( param.args[0].toString() + "   ->   " + param.getResult().toString());
    }
});

2

2. 在解密后的字符串中搜索“params”，定位到com.netease.cloudmusic.i.f 这个类的a方法

3

3. 这个方法的作用就是把请求参数拼成一个json字符串，传给native层函数serialdata进行加密，将返回的字符串放进一个Map中。

Native层分析

1. Serialdata是com.netease.cloudmusic.utils.NeteaseMusicUtils类的native方法。在libs目录下的so库里，并没有找到函数名为***的导出函数。

4

2. 仔细看看NeteaseMusicUtils的static代码块，发现调用了UtilInterface.load(“poison”);

5

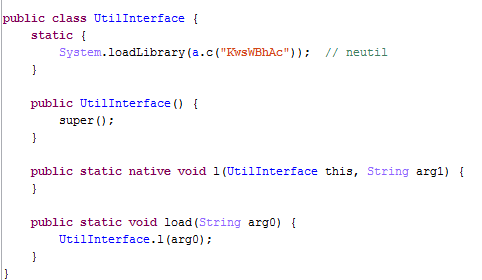

3. 跟踪UtilInterface.load, 发现load这个方法调用了UtilInterface的 native方法l.

6

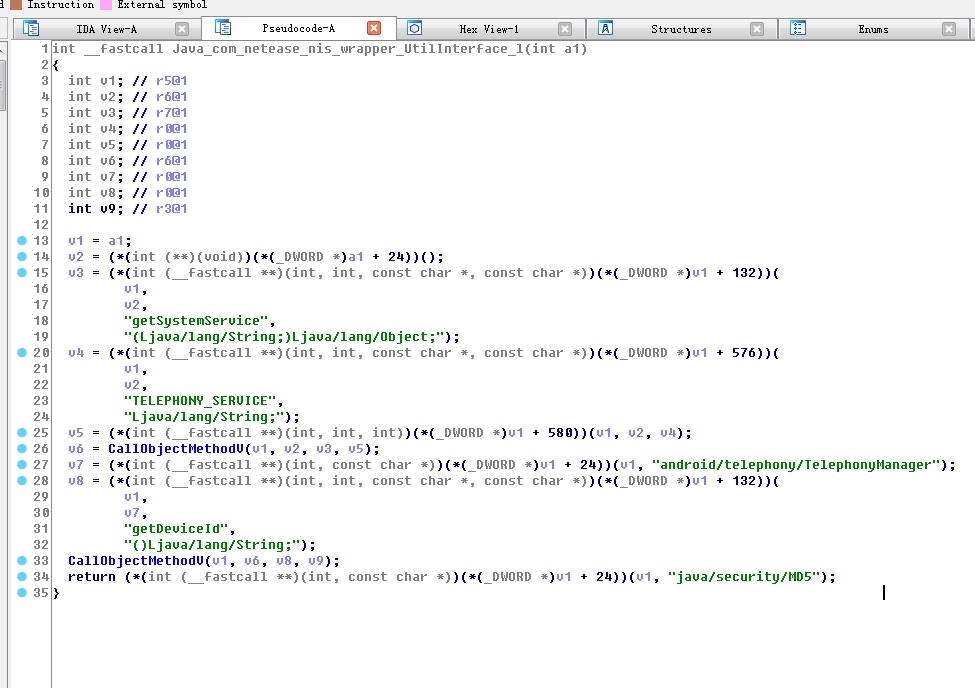

4. 并没有在l方法中找到注册serialdata函数的代码.

7

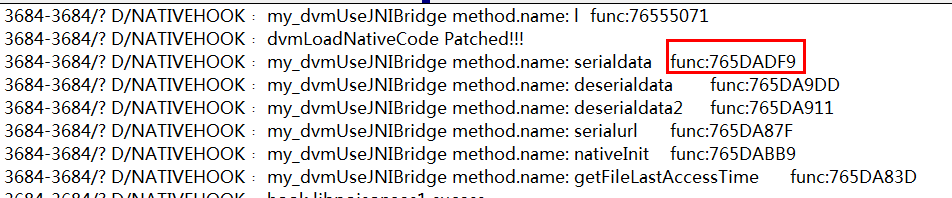

5. 于是使用Cyida hook了libdvm.so中的dvmLoadNativeCode和dvmUseJNIBridge 方法。前者可以确定加载so的路径，后者可以确定jni函数的地址。

1
2
3
4
5
6
7
8
9
10
11
12
13
bool my_dvmLoadNativeCode(char* soPath, void* classLoader, char** detail)
{
    LOGD("soPath:%s",soPath);
    return old_dvmLoadNativeCode(soPath,classLoader,detail);
}


void my_dvmUseJNIBridge(void* method, void* func)
{
    LOGD("my_dvmUseJNIBridge method.name: %s\tfunc:%.8X",*(char**)(method+16), func);
    old_dvmUseJNIBridge(method,func);
}

8

9

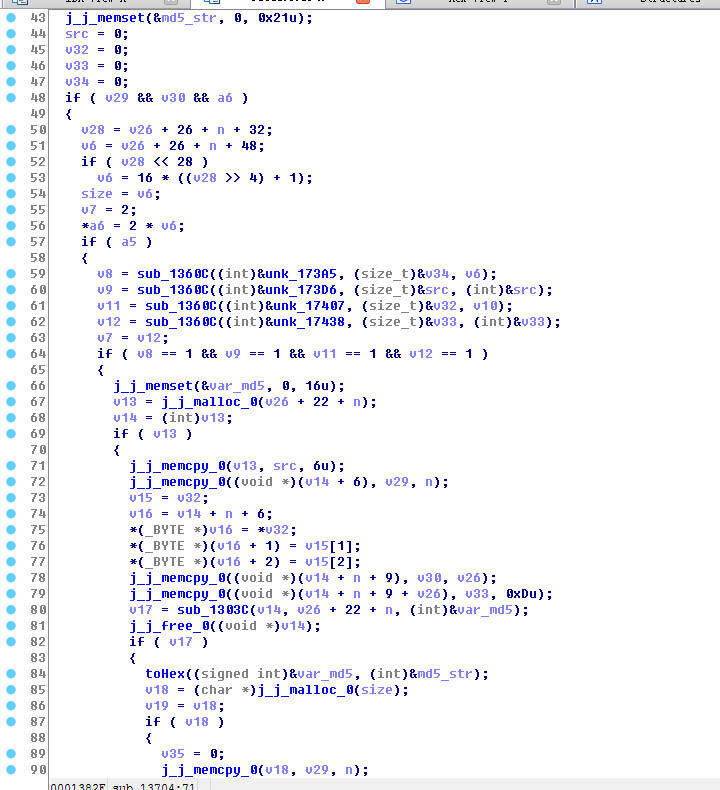

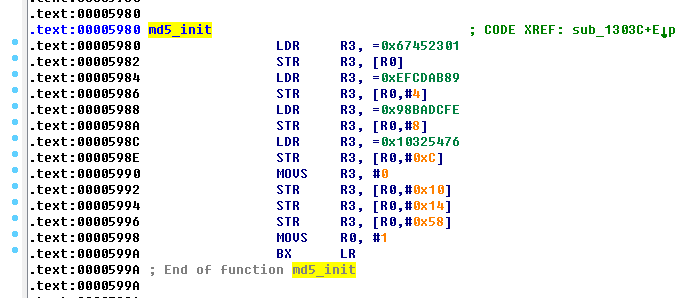

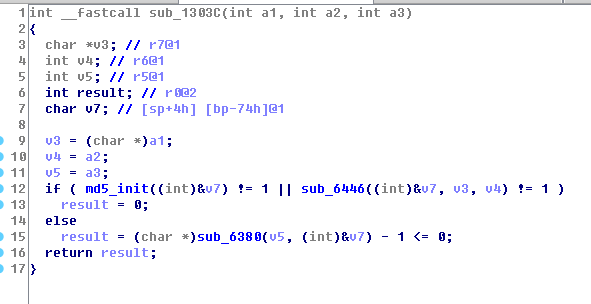

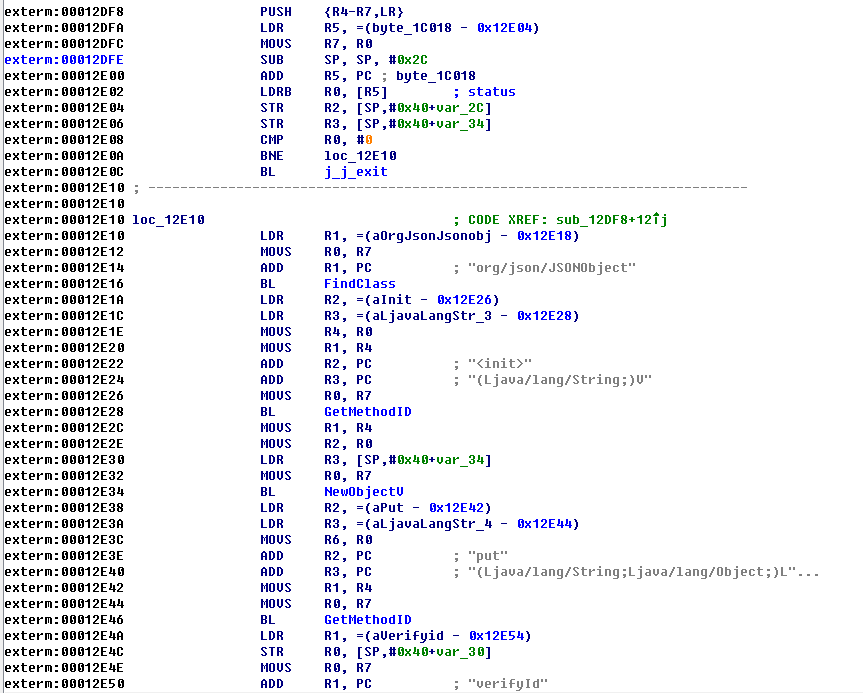

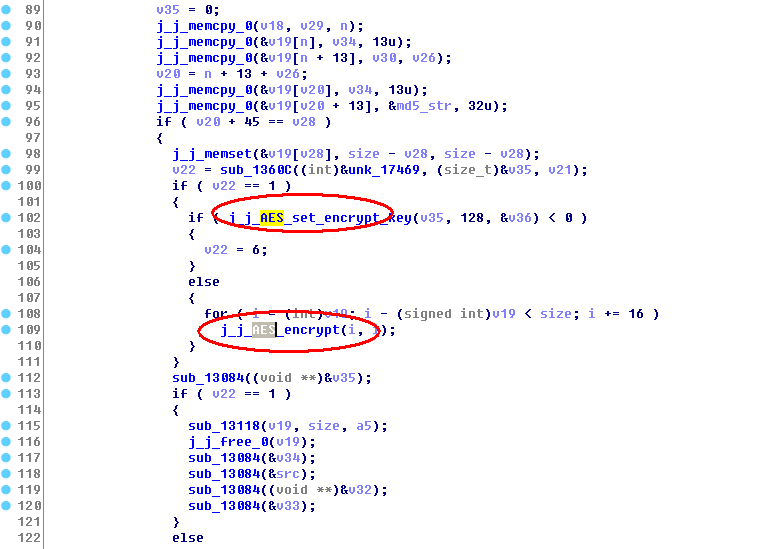

6. serialdata主要对java层传递过来的json字符串进行转换、拼接，然后算一个MD5值放在最后，再调用AES加密函数。

10

11

12

13

14

1
2
3
4
5
6
str = 'nobody%suse%smd5forencrypt' % (uri, data)
md5 = hashlib.md5()
md5.update(str)
md5str = md5.hexdigest()
constid = '36cd479b6b5'
params = '%s-%s-%s-%s-%s' % (uri, constid, data, constid, md5str)

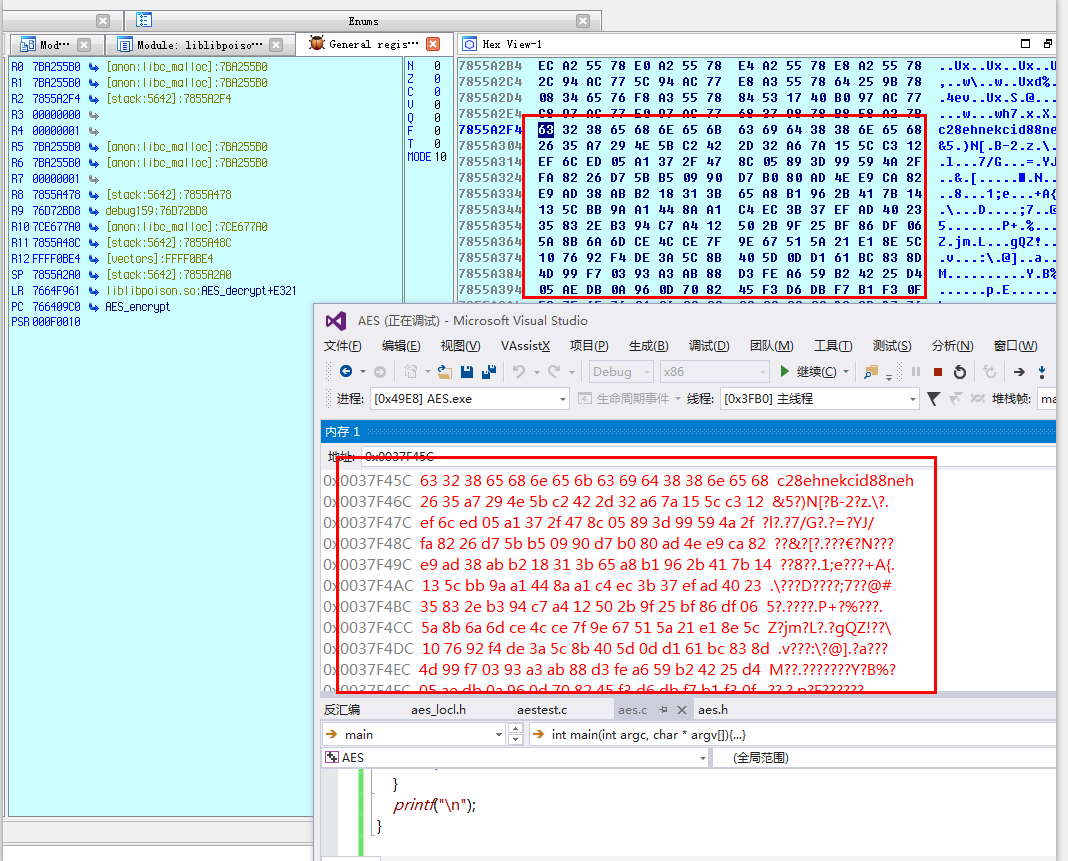

7. 动态调试，对AES_encrypt下断，观察参数，可以获取到加密的密钥。

15

8. 还原加密算法，封装成so，用python 调用API接口。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
from ctypes import *
import os
import hashlib
import urllib2
import binascii
import time
import json

libcloudmusic = cdll.LoadLibrary(os.getcwd() + '/cloudmusic.so')

def decrypt(enc_data):
    cloudmusic_decrypt = libcloudmusic.cloudmusic_decrypt
    cloudmusic_decrypt.argtype = [c_char_p,c_char_p]
    data = ' '*(len(enc_data)/2)
    cloudmusic_decrypt(enc_data,data)
    data = data.replace('\000', '')
    return data.strip()

def encrypt(data):
    cloudmusic_encrypt = libcloudmusic.cloudmusic_encrypt
    cloudmusic_encrypt.argtype = [c_char_p,c_char_p]
    encdata = ' ' * 2 * (len(data) + 16-len(data)%16)
    cloudmusic_encrypt(data,encdata)
    return encdata

def getmd5(s):
    md5 = hashlib.md5()
    md5.update(s)
    return md5.hexdigest()

def getparams(uri, data):
    s = 'nobody%suse%smd5forencrypt' % (uri, data)
    md5 = getmd5(s)
    constid = '36cd479b6b5'
    params = '%s-%s-%s-%s-%s' % (uri, constid, data, constid, md5)
    return encrypt(params)

def request(url, data):
    headers = {'User-Agent':'android'}
    req = urllib2.Request(url)
    http = urllib2.urlopen(url,data=data)
    content = http.read()
    return content

def playlist_info(playlistid):
    url = 'http://music.163.com/eapi/v3/playlist/detail'
    uri = '/api/v3/playlist/detail'
    tpl = '''{"id":" ","n":"1000","t":" ","s":"5","c":"[]",
			"e_r":"true","header":{"os":"android","requestId":"1469863382839_317",
             "mobilename":"MI4LTE","osver":"4.4.4","resolution":"1920x1080",
            "buildver":"139278","MUSIC_U":"***","channel":"netease",
            "appver":"3.5.2","deviceId":"***"}}
          '''
    d = json.loads(tpl)
    d['id'] = playlistid
    d['t'] = int(time.time())*1000
    data = json.dumps(d)
    params = getparams(uri, data)
    postdata = 'params=%s' % (params)
    raw_data = request(url, postdata)
    enc_data = binascii.b2a_hex(raw_data)
    dec_data = decrypt(enc_data)
    print dec_data

if __name__ == '__main__':
    playlist_info('374082787')
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
➜  ~  python cloudmusic_api_test.py|python -m json.tool

{
    "code": 200,
    "playlist": {
        "adType": 0,
        "cloudTrackCount": 0,
        "commentCount": 0,
        "commentThreadId": "A_PL_0_374082787",
        "coverImgId": 923589767384661,
        "createTime": 1462184119385,
        "creator": {
            "accountStatus": 0,
            "authStatus": 0,
            "authority": 0,
            "avatarImgId": 1418370007886995,
            "avatarUrl": "http://p3.music.126.net/68DiGwbR2THQlb1szd37Iw==/1418370007886995.jpg",
            "backgroundImgId": 2002210674180200,
            "backgroundUrl": "http://p1.music.126.net/45Nu4EqvFqK_kQj6BkPwcw==/2002210674180200.jpg",
            "birthday": 631123200000,
            "city": 1004400,
            "defaultAvatar": false,
            "description": "",
            "detailDescription": "",
            "djStatus": 0,
            "expertTags": null,
            "followed": false,
            "gender": 1,
            "mutual": false,
            "nickname": "zzhighest",
            "province": 1000000,
            "remarkName": null,
            "signature": "\u4e2d\u5fc3\u85cf\u4e4b\uff0c\u4f55\u65e5\u5fd8\u4e4b\u2026",
            "userId": 119900879,
            "userType": 0,
            "vipType": 0
			......
